UV Sterilization & Disinfection
Aquarium UV Disinfection & Sterilization Systems

Aquarium UV Sterilizers & Disinfectors

The aquarium UV Disinfection & Sterilization System is a sterilizing device for wastewater treatment, where the Ultra Violet radiation targets directly to microorganisms & genetic material (DNA & RNA) destruction. The comparative advantage of the UV disinfection system over various chemical disinfection methods is the maintained and unaffected physical and chemical composition of water after the UV radiation activity. The UV is effective against any type of microorganism such as algae, bacteria, virus, fungi, yeasts, etc.

UV Disinfection Equipment for Aquariums
UV Disinfection Equipment for Aquariums

OFFER, USE & APPLICATION of MAT Aquarium UV Devices

Our UV Disinfection devices are applicable to Aquariums, Aquaculture Facilities, Aquarium Life Support Systems, Swimming Pools and to any Wastewater Treatment Applications. MAT UV Disinfection devices is the solution for total water sterilization.

OPERATION & ENGINEERING OF UV DISINFECTION

Prefiltered water flows into the UV Disinfection device, where Ultraviolet Radiation is emitted to destroy the genetic material of the microorganisms contained in the water. Moreover, the MAT low pressure UV lamps, are capable of multi-frequency emission, resulting in chloramines elimination through a photochemical reaction. The combined chlorine is reduced up to more than 50%.

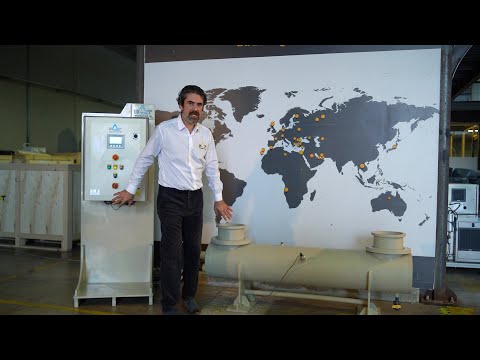

Aquarium UV Sterilization Systems Presentation by Poema del Mar

The head of Filtration Systems at Poema del Mar Aquarium explains the use of ultraviolet filtration in public aquariums. It is one of the most important procedures when talking about the quality of the water that circulates through the aquarium. Since it acts as a germicide in the sterilization process this procedure is used to eliminate algae bacteria, viruses and germs thus preventing the spread of diseases. The UV lamp of a UV Sterilizer is isolated from the water by means of a quartz tube which supports the pressure of the water and the temperature of the lamp. In completion with other mechanical and biological filtration systems Poema del Mar Aquarium ensures the best quality of water in the facility.

ADVANTAGES OF MAT UV DISINFECTION

Maintaining unaffected physical and chemical composition of the water microorganism Reduced combined chlorine concentration when used in Pools Minimized risk of handling and dosing hazardous chemical products Avoidance of hyper chlorination Resistive and durable structure.

Public Aquarium Disinfection Against Corrosion

MAT Sterilizers stand against corrosion of sea water and provide excellent disinfection. They are used in public aquariums, fish farms & aquaculture.

EQUIPMENT SPECIFICATIONS

UV ModelUVC-1UVC-5UVC-10UVC-20UVC-50UVC-100UVC-250UVC-350UVC-500UVC-700UVC-1000
Product DescriptionUV DIS-INFECTION
UNIT-PP BODY
UV DIS-INFECTION
UNIT-PP BODY
UV DIS-INFECTION
UNIT-PP BODY
UV DIS-INFECTION
UNIT-PP BODY
UV DIS-INFECTION
UNIT-PP BODY
UV DIS-INFECTION
UNIT-PP BODY
UV DIS-INFECTION
UNIT-PP BODY
UV DIS-INFECTION
UNIT-PP BODY
UV DIS-INFECTION
UNIT-PP BODY
UV DIS-INFECTION
UNIT-PP BODY
UV DIS-INFECTION
UNIT-PP BODY
Nominal Flow Rate
[m³/h]
151020501002503505007001000
Max Flow Rate
[m³/h]
281230551153003705007001000
UV dose-nominal flow
[J/m2]
400463423439444435430428456456314
Lamp UV 254 nm efficiency
[%]
3838383838383838383838
Design Water UVT Ratio
[%]
9898989898989898989898
Quartz Sleeve Transmittence Value
[%]
9393939393939393939393
Inlet / Outlet Connection TypePipe Fitting ConnectionPipe Fitting ConnectionPipe Fitting ConnectionPipe Fitting ConnectionFlange Adaptor with Gasket (RF)Flange Adaptor with Gasket (RF)Flange Adaptor with Gasket (RF)Flange Adaptor with Gasket (RF)Flange Adaptor with Gasket (RF)Flange Adaptor with Gasket (RF)Flange Adaptor with Gasket (RF)
Connection Orientation
Standard
UUUUUUUUUUU
Connection Orientation
Options
L/ZL/ZL/ZL/ZL/ZL/ZL/ZL/ZL/ZL/ZL/Z
Flange/ Pipe Connection Sizes1 " BSP1 1/2" BSP2" BSP3" BSPDN100DN150DN200DN300DN400DN400DN400
Piping Norm AdopteISO1452-2 PN10ISO1452-2 PN10ISO1452-2 PN10ISO1452-2 PN10ISO1452-2 PN10ISO1452-2 PN10ISO1452-2 PN10ISO1452-2 PN10ISO1452-2 PN10ISO1452-2 PN10ISO1452-2 PN10
Flange Pattern NormN/AN/AN/AN/AISO1452-3 PN10ISO1452-3 PN10ISO1452-3 PN10ISO1452-3 PN10ISO1452-3 PN10ISO1452-3 PN10ISO1452-3 PN10
Drain Connection TypeThreadedThreadedThreadedThreadedThreadedThreadedThreadedThreadedThreadedThreadedThreaded
Drain Size
[in]
½”½”½”½”½”½”½”½”½”½”½”
UV Reactor Body MaterialPPPPPPPPPPPPPPPPPPPPPP
UV Reactor Diameter (Ø)
[mm]
637590140140200315355500500500
UV Reactor Length
[mm]
6509849889991724172417341734173417341734
UV Reactor Width
[mm]
135160190250255300460500660660660
UV Reactor Height
[mm]
300380,4393,4463,4460569,8680730975975975
Operation Temperature Range
C
2-452-452-452-452-452-452-452-452-452-452-45
Max Operating Pressure
[bar]
25555555555
Test pressure
[bar]
37.57.57.57.57.57.57.57.57.57.5
UV Reactor Temperature AlarmStandardStandardStandardStandardStandardStandardStandardStandardStandardStandardStandard
Number Of UV Lamps
[pcs]
1123123681012
Lamp CategoryLow Pressure
Amalgam Lamp
Low Pressure
Amalgam Lamp
Low Pressure
Amalgam Lamp
Low Pressure
Amalgam Lamp
Low Pressure
Amalgam Lamp
Low Pressure
Amalgam Lamp
Low Pressure
Amalgam Lamp
Low Pressure
Amalgam Lamp
Low Pressure
Amalgam Lamp
Low Pressure
Amalgam Lamp
Low Pressure
Amalgam Lamp
Lamp Lifespan
[h]
1700017000170001700017000170001700017000170001700017000
Power Per Lamp
[W]
48878787400400400400400400400
UV Lamp Standard Cable Lenght
[m]
66666666666
Electrical Panel Protection ClassIP66IP55IP55IP55IP55IP55IP55IP55IP55IP55IP55
UV Body Operational Weight
[kg]
46,69,611,934,964,9150,4180,7433,8433,8438,3
UV Body Dry Weight (UV Chamber)
[kg]
1,82,33,25,28,114,925,739,7120120122
Control Bord Widht
[mm]
40040050050050060070080080010001000
Control Bord Depth
[mm]
210210210210210210300400400400400
Control Bord Lenght
[mm]
300300400400400400500450450600600
Control Bord Dry Weight
[kg]
466,87,56,813,21865758590
Total Current
[A]
0.3A0.5A1A1.5A2.5A5A8.5A7A8.5A10A16A
Supply Voltage 50/60Hz*
[V]
1~230V AC1~230V AC1~230V AC1~230V AC1~230V AC1~230V AC1~230V AC3~400V AC3~400V AC3~400V AC3~400V AC
UV Model
Optional Features
UVC-1UVC-5UVC-10UVC-20UVC-50UVC-100UVC-250UVC-350UVC-500UVC-700UVC-1000
PLC Control BoardOptionalOptionalOptionalOptionalOptionalOptionalOptionalOptionalOptionalOptionalOptional
Optional Cable Lenght Max.
[m]
1515151530303030303030
Digital Flow MeterOptionalOptionalOptionalOptionalOptionalOptionalOptionalOptionalOptionalOptionalOptional
Body Support FootOptionalOptionalOptionalOptionalOptionalOptionalOptionalOptionalOptionalOptionalOptional
Ø20 U-PVC Drain Valve ControlOptionalOptionalOptionalOptionalOptionalOptionalOptionalOptionalOptionalOptionalOptional
Control Board Widht (with PLC)
[mm]
60060060070060070070080080010001000
Control Board Depth (with PLC)
[mm]
210210210300210300300400400400400
Control Board Lenght (with PLC)
[mm]
400400400500400500500450450600600
Control Board Dry Weight (with PLC)
[kg]
4,36,37,17,87,113,51865758590
* MAT FILTRATION TECHNOLOGIES™ preserves the right to update anytime the listed prices (if any). Every effort has been made so that the above specs are accurate. However please contact our Sales Department for up to date technical data, electrical specs according to your regional requirements and current Ex-Works pricelist. The listed prices are for the basic equipment and do not include any optional components.

Specification Details

UV-C dose @ UVT 99% - 1cm>400 J/m2 (9.000-16.000 h)
Lamp lifespan9,000 - 16,000 h
Manifold materialPolypropylene
Max. temperature35°C
Max. pressure 6 bar4 bar x PE830-PE980
Electrical supply230/240 V – 50/60 Hz
Electrical PanelLCD (PLUS) (PE3-PE15)
RACK LCD (PLUS) (PE22-PE45)
DS (PLUS) (PE60-PE980)
Configuration"Z" SHAPE (PE3-PE60)
"U" SHAPE (PE110-PE980)
