Aquarium Ozone Generator Model OG-5

AQUARIUM OZONE GENERATORS

MAT OZONE GENERATORS are designed & manufactured in-house to provide stable and actual ozone delivery in high humidity environments. An Ozone generator is a sensitive electrical water treatment equipment which is fabricated specifically for aquarium filtration room conditions. The Ozone units cover a wide variety of high quality ozone production needs, starting from 5 g/h up to 100 g/h. The MAT Ozone generators maximize the efficiency of the water treatment process when paired with one of the MAT integrated Compact System components or used as a stand-alone disinfection system. MAT Ozone Generators are designed for stable use, low power consumption, minimized footprint and operation in saline and humid ambient conditions. Fitted with regenerative air dryers, MAT Ozone generators provide efficient dry air supply.

OFFER, USE & APPLICATION

MAT OZONE GENERATORS offer the solution for an effective, safe and natural disinfection process. Ozone is a dangerous and unstable gas and must be produced and distributed under strict operations conditions. MAT has the technology and expertise to design safe ozone systems to deliver the actual ozone specified output.

MAT OZONE GENERATORS are applicable to Aquaculture Facilities, Aquarium Life Support Systems and all Water and Air disinfection applications.

OPERATION & ENGINEERING

Ozone Generators Engineering

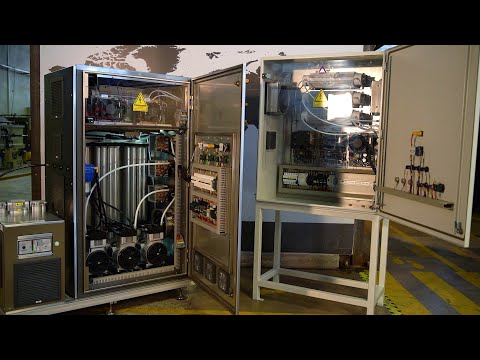

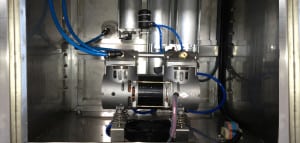

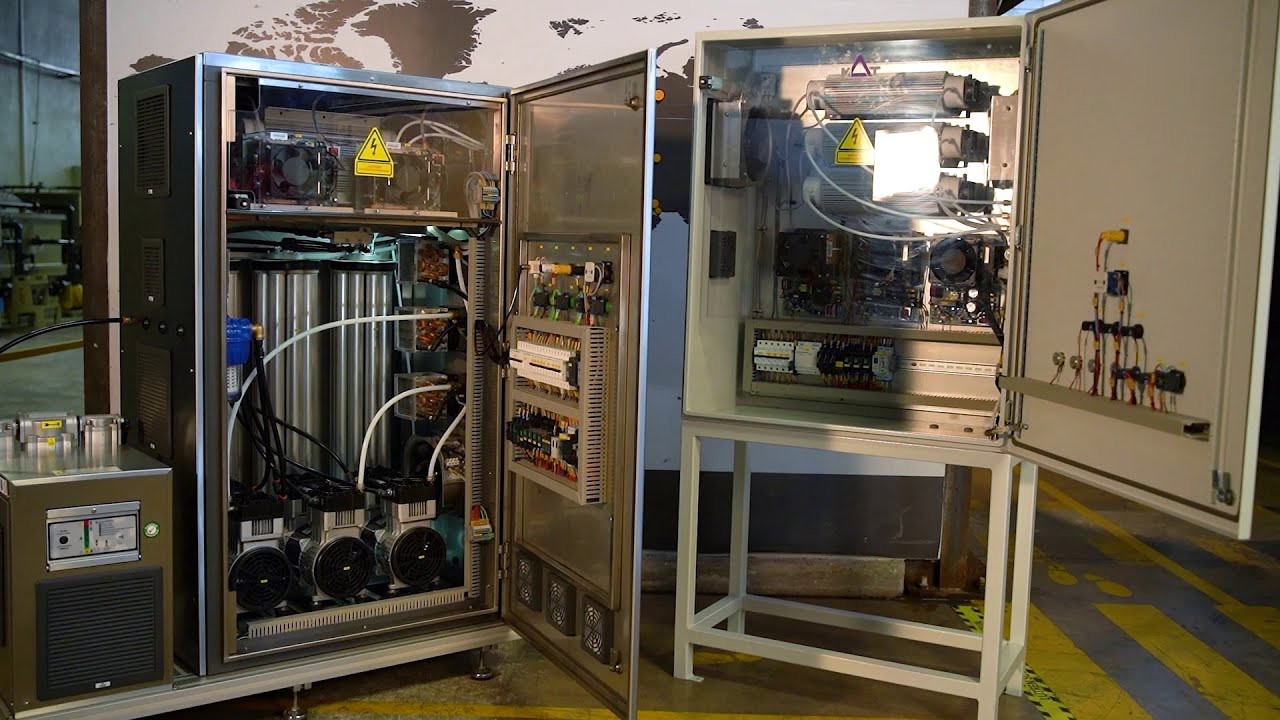

The inside Ozone Engineering of a 2014 model

MAT OZONE GENERATORS utilize one low energy consumption air dryer, to supply dry air to the Oxygen Concentrators. The dried air is supplied to the Oxygen Concentrators by an oil free compressor. These Oxygen Concentrators work on the PSA (Pressure Swing Adsorption) principle, leading to a high purity ~93%, discriminated from air Oxygen, which is ready for the final process step through the Ceramic Corona Cell. The process inside to the Ceramic Corona Cell involves a powerful electric discharge that splits Oxygen molecule to atoms, which for stability reasons, they are attached to other intact Oxygen molecules forming Ozone. All the components of the ozone generators are repairable and replaceable.

Ozone Generator Technology

MAT offers multiple solutions for water treatment in large and commercial public aquariums. We design and build turnkey Life Support Systems that carry ozone water treatment systems. The MAT ozone generators and oxygen concentrators have several unique advantages that apply to aquaculture fish farming and public aquariums such as:

How MAT can help you increase & insure water quality with MAT ozone water treatment.

  • Built-in Oxygen Concentrators to produce high quality Ozone
  • Built-in Air Dryers to increase Ozone Generator efficiency & performance
  • Built-in Oil free air compressor
  • Built-in Oxygen Concentrators
  • Built-in Ventilation
  • Ceramic Corona Cell
  • Low energy consumption Air Dryer
  • Low pressure drops
  • User friendly interface
  • Maintenance friendly design
  • Long service periods
  • Filter bypass implementation capability
  • +3 °C pressure dew-point
  • Suitable for tropical and high humidity conditions operation
  • R-134a, environmentally friendly gas
  • Small footprint
  • Automated, smart control of operation
  • Oil free compressor elongates the Air Dryer and Oxygen Concentrator life
  • Durable robust design excellent resistance to harsh environment
  • CE Certification
  • No filter clogs
  • No need of periodic backwashing
  • No problems due to sludge bulking
  • Resistive and durable structure Low head pressure loss
  • Reduced sludge production
  • No need of periodic backwashing
  • No sludge bulking
  • Complete organic load removal
  • Compact Unit with increased treating process capacity

EQUIPMENT SPECIFICATIONS

Corona Discharge Ozone Generator 1-100 Gr/HourOZC-1OZC-2OZC-5OZC-10OZC-20OZC-30OZC-50OZC-100
Ozone Production MethodCorona DischargeCorona DischargeCorona DischargeCorona DischargeCorona DischargeCorona DischargeCorona DischargeCorona Discharge
Footprint
Width [mm]
4504509369361054105410541283
Footprint
Depth [mm]
255255580580667667667823
Max Height
[mm]
6606609689681250125012501580
Device Weight
[kg]
1515100112153175185326
Supply Voltage 50/60 Hz
[V]
1~2301~2301~2301~2301~2301~2301~2303~400
Nominal Energy Consumption
[Wh]
100112108312891412175025635890
Installed Power
[W]
115130132215931728213331677420
Total Heat Load
[W]
571872052783645971438
Feeding TypeAirAirAirAirAirAirAirAir
Feeding Oxygen Flow Rate
[L/min]
N/AN/A34,510101039
Oxygen Concentration
%
N/AN/A>90>90>90>90>90>90
Feeding Oxygen pressure
bar
N/AN/A0.8-1.10.8-1.10.8-1.10.8-1.10.8-1.10.8-1.1
Ozone Output
[g/h]
12510203050100
Ozone Flow Rate
[L/min]
91334,56102039
Ozone Concentration
% wt
0,140,182343,53,23,3
Cooling Type
Media
AirAirAirAirAirAirAirAir
Cooling Water Flow
[m3/h]
N/AN/AN/AN/AN/AN/AN/AN/A
Cooling Water Parameter
In/Out C
N/AN/AN/AN/AN/AN/AN/AN/A
Ozone Outlet Size
[mm] // inc
88888888
Corona Discharge Ozone GeneratorOZC-250OZC-500OZC-1000OZC-2000OZC-3000OZC-5000OZC-6500
Ozone Production Method
C.D.
Corona DischargeCorona DischargeCorona DischargeCorona DischargeCorona DischargeCorona DischargeCorona Discharge
Footprint
Width [mm]
2300220022002800300025003000
Footprint
Depth [mm]
1300170020002350280043004700
Max Height
[mm]
2000220021002500245026002600
Device Weight
[kg]
55093019002800350058007000
Supply Voltage 50/60 Hz
[V]
3~4003~4003~4003~4003~4003~4003~400
Nominal Energy Consumption
[Wh]
7000110001600028000430007100089000
Installed Power
[W]
8000120001750030000450007500090000
Total Heat Load
[W]
2000230030004000600080009000
Feeding TypeOxygenOxygenOxygenOxygenOxygenOxygenOxygen
Feeding Oxygen Flow Rate
[L/min]
40801603204808001040
Oxygen Concentration
%
>90>90>90>90>90>90>90
Feeding Oxygen pressure

bar
1111111
Feeding Oxygen Dew Point
C
< -30< -30< -30< -30< -30< -30< -30
Feeding Gas Minimum Nitrogen
%
≥ 1≥ 1≥ 1≥ 1≥ 1≥ 1≥ 1
Ozone Output
[g/h]
25050010002000300050006500
Ozone Flow Rate
[L/min]
40801603204808001040
Ozone Concentration
% wt
9999999
Cooling TypeWater CooledWater CooledWater CooledWater CooledWater CooledWater CooledWater Cooled
Cooling Water Flow
[m3/h]
0,81,52,557,512,516,5
Cooling Water max pressure
[bar]
5555555
Cooling Water Parameter
In/Out C
7--127--127--127--127--127--127--12
Ozone Outlet Size
[mm] // inc
10101/2"1/2"3/4"1"1"
Corona Discharge Ozone Generator 1-100 Gr/Hour
Optional Features
OZC-1OZC-2OZC-5OZC-10OZC-20OZC-30OZC-50OZC-100
Ozone Analyzer
g/Nm3
N/AN/A10-60010-60010-60010-60010-60010-600
Backflow Prevention Device
Model
BFP-50BFP-50BFP-50BFP-50BFP-50BFP-50BFP-50BFP-50
Ambient Ozone Detector
ppm
0,10,10,10,10,10,10,10,1

Corona Discharge Ozone Generator
Optional Features
OZC-250OZC-500OZC-1000OZC-2000OZC-3000OZC-5000OZC-6500
Compressor
Brand Model
ATV 7,5 TDATV 15 TDATV 22 TDATV 45 D VSATV 75 D VSATV 132 D VSATV 160 D VS
Compressor
Capacity
bar/Lpm
10/99010/180010/313010/635010/1032010/1891010/21130
Compressor
Installed Power
[W]
7,515224575132160
Compressor
Footprint
WxDxH [mm]
643 x 1850 x 1580643 x 1530 x 1783820 x 1900 x 18701150 X 1900 X 15351150 X 2000 X 15351500 X 2650 X 22351740 X 3000 X 2555
Compressor
Weight
kg
4074738061046194226963952
Air Tank
Capacity
Lt
5005007502000200050005000
Air Tank
Weight
kg
110150235335425740902
Air Dryer
Capacity
bar/Lpm
10/166010/258010/350010/820010/1550010/2000010/30000
Air Dryer
Installed Power
[W]
0,550,7511,52,25,55,5
Air Dryer
Footprint
WxDxH [mm]
473 x 453 x 832473 x 453 x 83553 x 503 x 874678 x 648 x 1157948 x 728 x 1370948 x 728 x 1370948 x 798 x 1460
Air Dryer
Weight
kg
515378160220230285
Air Dryer
Dew Point
C
< 5< 5< 5< 5< 5< 5< 5
PSA unit
Footprint
WxDxH [mm]
350/ 700 / 1420500/1000/ 1220500/1000 / 1870600/1200 / 2110775/1550 / 2110975/1950 / 22601075/ 2150 / 2210
PSA unit
Weight
kg
2103406001150155025003200
PSA unit
Oxygen Production
[L/min]
40801603204808001040
PSA unit
Air requirements
bar/Lpm
10/99010/180010/313010/635010/1032010/1891010/21130
PSA unit
Dew Point
C
< -30< -30< -30< -30< -30< -30< -30
Oxygen Tank
Capacity
Lt
10020030050075015002000
Oxygen Tank
Weight
kg
5085110155220525630
Chiller
Capacity
kcal/h
375075001250025000340005860070000
Chiller
Installed Power
kW
1,535,59112225
Chiller
Footprint
WxDxH [mm]
525x720x1140655x1050x1250655x1050x1250857x1265x1389900x1600x17151050x2380x22551050x2380x2255
Chiller
Weight
kg
125183205320390600650
Ozone Analyzer
Range from
g/Nm3
10-60010-60010-60010-60010-60010-60010-600
Ozone Detector
Precision
ppm
0,10,10,10,10,10,10,1
Corona Discharge Ozone Generator
with external Oxygen supply
OZO-10OZO-20OZO-50OZO-100
Ozone Production MethodCorona DischargeCorona DischargeCorona DischargeCorona Discharge
Footprint
A-Width [mm]
500500600850
Footprint
B-Depth [mm]
400400400400
Footprint
C-Height[mm]
7007008001000
Ozone Output
[g/h]
102050100
Ozone Concentration
[g/m³]
33,433,441,441,6
Oxygen Concentration
%
>90>90>90>90
Feeding Oxygen pressure
bar
1,01,01,01,0
Feeding Oxygen Dew Point
C
< -30< -30< -30< -30
Feeding Gas Minimum Nitrogen
%
≥ 1≥ 1≥ 1≥ 1
Installed Power
[W]
2503508001500
Supply Voltage 50/60 Hz
[V]
1~2201~2201~2201~220
Ozone Outlet Size
[mm]
8888
Ozone Flow Rate
[L/min]
4,5102040
Total Heat Load
[W]
5463211284
Air Conditioner
Filter+Dryer
1111
Enclosure MaterialPolycarbonatePolycarbonatePolycarbonateMetalic
Enclosure Rate
IP
44444444
Device Weight
[kg]
16204355
Corona Discharge Ozone Generator
with external Oxygen supply
Optional Features
OZO-10OZO-20OZO-50OZO-100
Ozone Analyzer
g/Nm3
10-60010-60010-60010-600
Backflow Prevention Device
Model
BFP-50BFP-50BFP-50BFP-50
Ambient Ozone Detector
ppm
0,10,10,10,1
* MAT FILTRATION TECHNOLOGIES™ preserves the right to update anytime the listed prices (if any). Every effort has been made so that the above specs are accurate. However please contact our Sales Department for up to date technical data, electrical specs according to your regional requirements and current Ex-Works pricelist. The listed prices are for the basic equipment and do not include any optional components.
