MBBR for Aquariums Moving - Bed Biofilm Reactor

MAT Moving Bed Filters

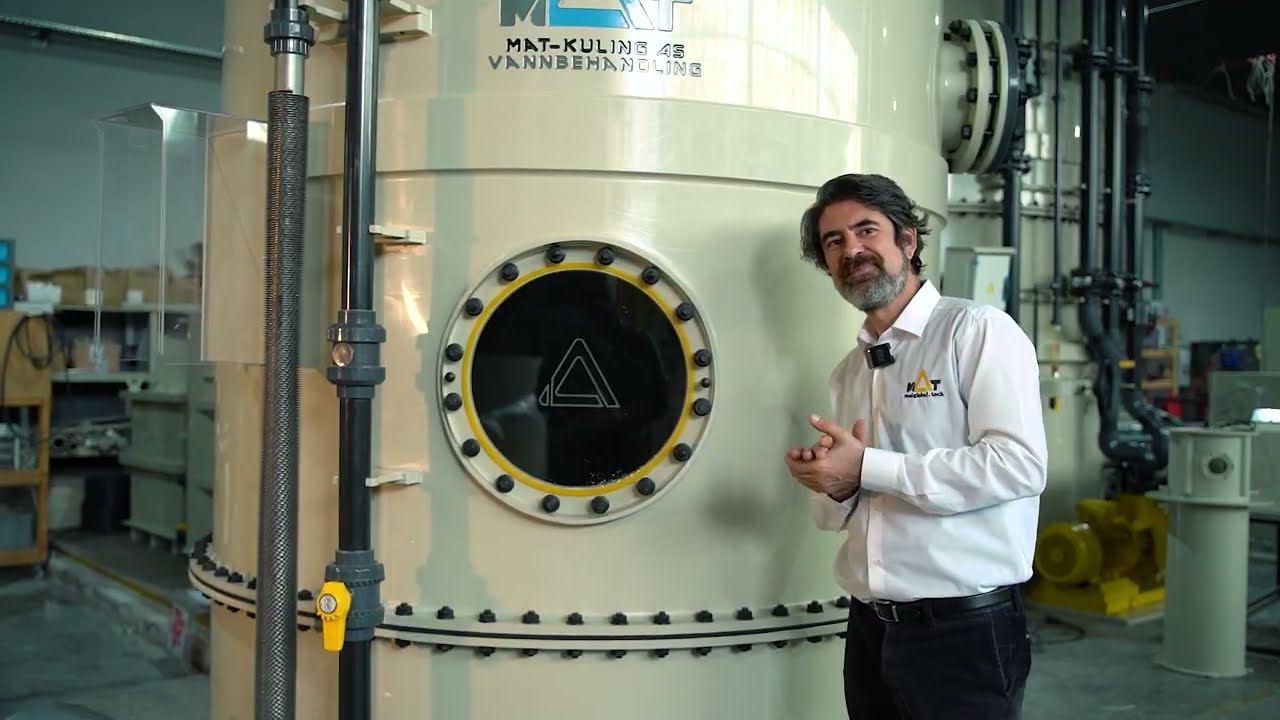

MAT MOVING BED BIOFILM REACTORS are biological filters, designed to efficiently enable the organic load degradation, either as a part of a Life Support System or more generally, as an apparatus to treat any Wastewater Treatment Process. The MAT MBBR bio tower, is made of Polypropylene, robust to withstand harsh operation conditions. The MAT MBBR range covers the treatment needs for Biomass load from 31 up to 850kg per bio-tower, utilizing low water volume and small footprint. The non-treated water stream is continuously mixed with air in the MAT MBBR, while the organic load is degraded biologically by microorganisms. This biofilm layer is formed on and in suspended polyethylene media.

MBBR Technology

OFFER, USE & APPLICATION OF AQUARIUM MBBRs

MAT Moving Bed Biofilm Reactor is an advanced and complete solution for organic load removal. MAT Moving Bed Biofilm Reactors are applicable to Aquariums, Aquaculture Facilities Life Support System & generally to any wastewater treatment process.

OPERATION & ENGINEERING OF MBBR

The Moving Bed Biofilm Reactor receives the overflowed and loaded with organic pollutants from service facilities water, at its vessel base, leading it subsequently upwards through the moving filter bed, to be discharged on the top and inside to the reactor vessel. The polyethylene bio-balls surface is used for the moving bed biofilm layer of the microorganisms’ growth and activity. The microorganisms’ biofilm activity converts the organic load to NO3 is enhanced by continuous air injection into the moving bed volume. MAT special design has optimized the air mixing process through high pressure air injection and fine air bubble subsequent formulation.

ADVANTAGES OF MBBR

  • Advanced Reactor design, Robust and Proper for saline water use
  • Combination of the advantages of fixed film and suspended growth process
  • Long Lasting Polyethylene moving bed media
  • Higher suspended biomass
  • Concentrations leading to long sludge retention time
  • Enhanced process stability
  • Small Biological Reactor volume
  • Smaller required surface for microorganisms’ growth and activity
  • No filter channeling
  • Low head pressure loss
  • Reduced sludge production
  • No need of periodic backwashing
  • No sludge bulking
  • Complete organic load removal
  • Compact Unit with increased treating processcapacity

Moving Bed Biofilter Reactor – MBBR Filters - SPECIFICATIONS

MODELPrice (€)Diameter (mm)Height (mm)Basic Unit (kW/h) Total Electric PowerSupply Voltage 50Hz (V)Water Inlet Level (mm)Inlet (mm)Outlet (mm)Water Outlet Level (mm)Max Flow (m³/h)Air Flow Rate (m³/h)Blower ModelBLOWER Driver ModelTAN Removal Rate with BM-1000 (grTAN/day)TAN Removal Rate with BM-4500 (grTAN/day)Max BM-1000 media (m³)Max BM-4500 media (m³)Body MaterialVFDOVERFLOW SWITCHBIOMEDIA
MAT MBBR-5001950.1550013730.433~400/230V117290110872154.710DL-MD-0.37 kWVACON 20X 20-3L-0006-4-X+HMTX113.226926226193470.700507597460.1887115437103220.161752751751704FOOD GRADE PPMUSTOPTONALOPTIONAL
MAT MBBR-7502846.0175017760.633~400/230V15181401601218552015DH-MD-0.55 kWVACON 20X 20-3L-0006-4-X+HMTX329.5373613983011369.933888098650.5492289356638350.47076765914043FOOD GRADE PPMUSTOPTONALOPTIONAL
MAT MBBR-10003398.35100019780.753~400/230V15852252501285802315DH-MD-0.55 kWVACON 20X 20-3L-0006-4-X+HMTX652.4773782240642712.441672331471.087462297040110.932110540320092FOOD GRADE PPMUSTOPTONALOPTIONAL
MAT MBBR-12505818.36125022231.53~400/230V1845250280154512044R30MD-1.1 kWVACON 20X 20-3L-0006-4-X+HMTX1145.773201933854763.142882324991.909622003223081.63681885990549FOOD GRADE PPMUSTOPTONALOPTIONAL
MAT MBBR-15007131.22150027751.53~400/230V2259280315195922044K04TD-2.2kWVACON 20X 20-3L-0006-4-X+HMTX2059.608508739388562.086800616583.432680847898972.94229786962769FOOD GRADE PPMUSTOPTONALOPTIONAL
MAT MBBR-200010985.07200028502.23~400/230V2179315355187928095K04TD-2.2kWVACON 20X 20-3L-0006-4-X+HMTX3760.4864063469815632.87920352826.267477343911645.37212343763855FOOD GRADE PPMUSTOPTONALOPTIONAL
MODELPrice (€)Diameter (Feet/Inch)Height (Inch)Basic Unit Total Electric Power (kW/h)Supply Voltage 50Hz (V)Water Inlet Level (Inch)Inlet (Inch)OutletWater Outlet Level (ft)Max Flow (gpm)Air Flow Rate (gpm)Blower ModelBLOWER Driver ModelTAN Removal Rate with BM-1000 (lb TAN/day)TAN Removal Rate with BM-4500 (lb TAN/day)Max BM-1000 media (gal)Max BM-4500 media (gal)Body MaterialVFDOVERFLOW SWITCHBIOMEDIA
MAT MBBR-5001950.154' 3"4' 6"0.433~400/230V3' 10"3"3"2' 10 1/2"6620.6810DL-MDVACON 20X 20-3L-0006-4-X+HMTX0.2496226429606681.0377169871650649.852315805630242.7305564048259FOOD GRADE PPMUSTOPTONALOPTIONAL
MAT MBBR-7502846.014' 3"5' 10"0.633~400/230V4' 12"5"5"3' 12"2428815DH-MDVACON 20X 20-3L-0006-4-X+HMTX0.7265055216830513.02018724013954145.090935148797124.363658698969FOOD GRADE PPMUSTOPTONALOPTIONAL
MAT MBBR-10003398.355' 3"6' 6"0.753~400/230V5' 2 1/2"8"8"4' 2 1/2"352101.2R20MDVACON 20X 20-3L-0006-4-X+HMTX1.438466388277355.97991027126728287.277146871191246.237554461021FOOD GRADE PPMUSTOPTONALOPTIONAL
MAT MBBR-12505818.3615' 9"7' 3 1/2"1.53~400/230V6' 1/2"8"8"5' 1"528193.6R30MDVACON 20X 20-3L-0006-4-X+HMTX2.5259975204914610.5009325494717504.468763819719432.401797559759FOOD GRADE PPMUSTOPTONALOPTIONAL
MAT MBBR-15007131.2318' 4 1/2"9' 1 1/2"1.53~400/230V7' 5"10"10"6' 5"968193.6R30MDVACON 20X 20-3L-0006-4-X+HMTX4.5406595105190718.8761702508721906.818344679981777.272866868555FOOD GRADE PPMUSTOPTONALOPTIONAL
MAT MBBR-200010985.079' 10"9' 4"2.23~400/230V7' 2"12"12"6' 2"1232418K05MSVACON 20X 20-3L-0006-4-X+HMTX8.2904534005873634.46459913672751655.692353049331419.16487404229FOOD GRADE PPMUSTOPTONALOPTIONAL

Moving Bed Media

CellsDiameter (mm)Height (mm)
6 cells128

Moving Bed Filtration - Material

  • Reaction tank: Polypropylene
  • Size: Custom made

Request a Quote for: Moving Bed Biofilter Reactor – MBBR Filters

In addition to the Moving Bed Biofilm Reactor Basic Setup please check from below which optional components you wish to be included in your configuration:MBBR MediaMBBR SensorMBBR Control Board with VFD (Only for High Performance Models)MBBR Distribution Pump (Only for High Performance Models)
