Drum Filters

Drum Filter for Aquariums

The MAT Drum Filters are microscreen filters designed for herbivorous diet animals in zoos and public aquariums. They come with automated backwash and they have an optimized design for large flow capacity.

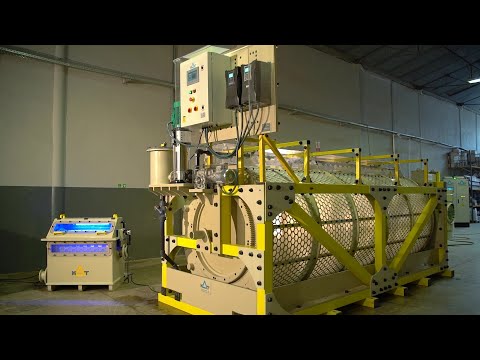

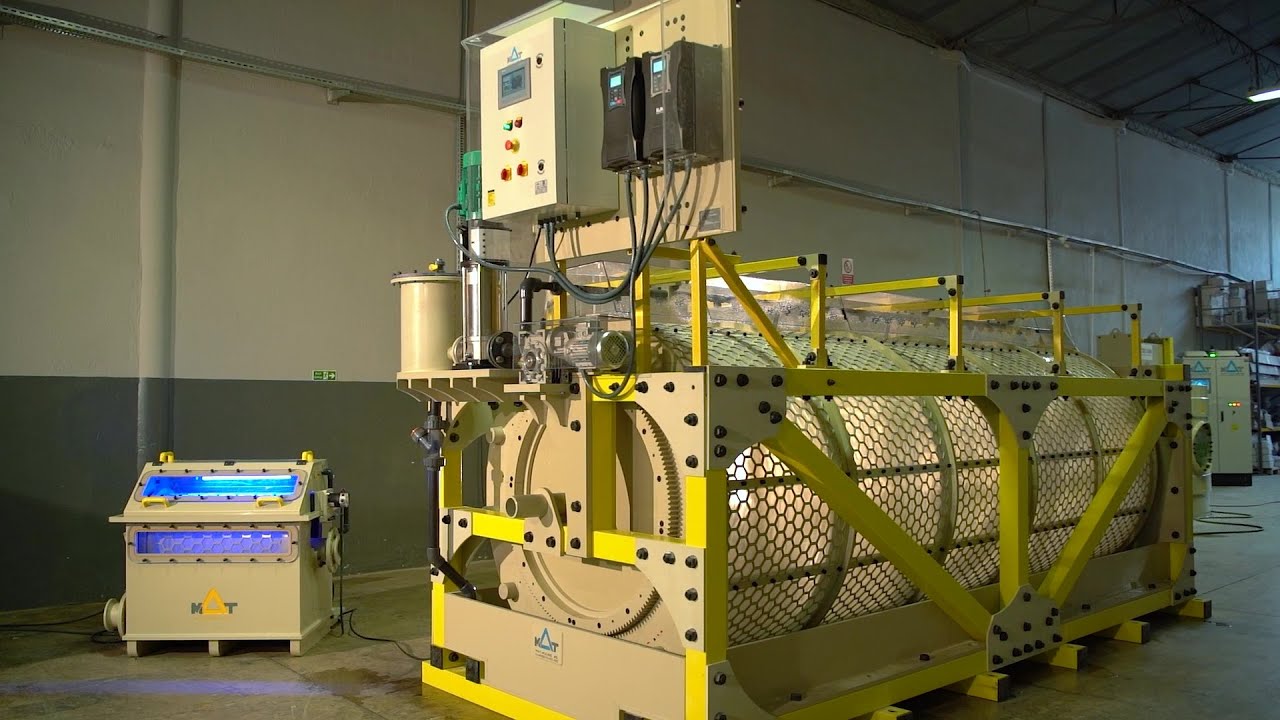

Drum Filters - Water Treatment, Part 1/3

Drum Filters - Water Treatment, Part 1/3

Watch this video on YouTube

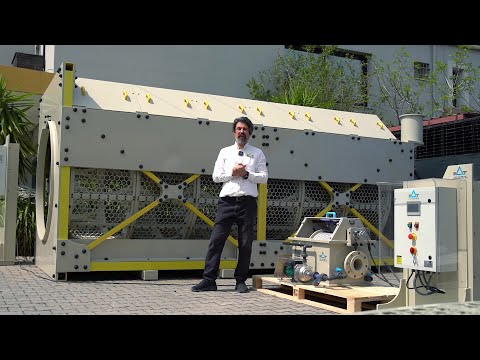

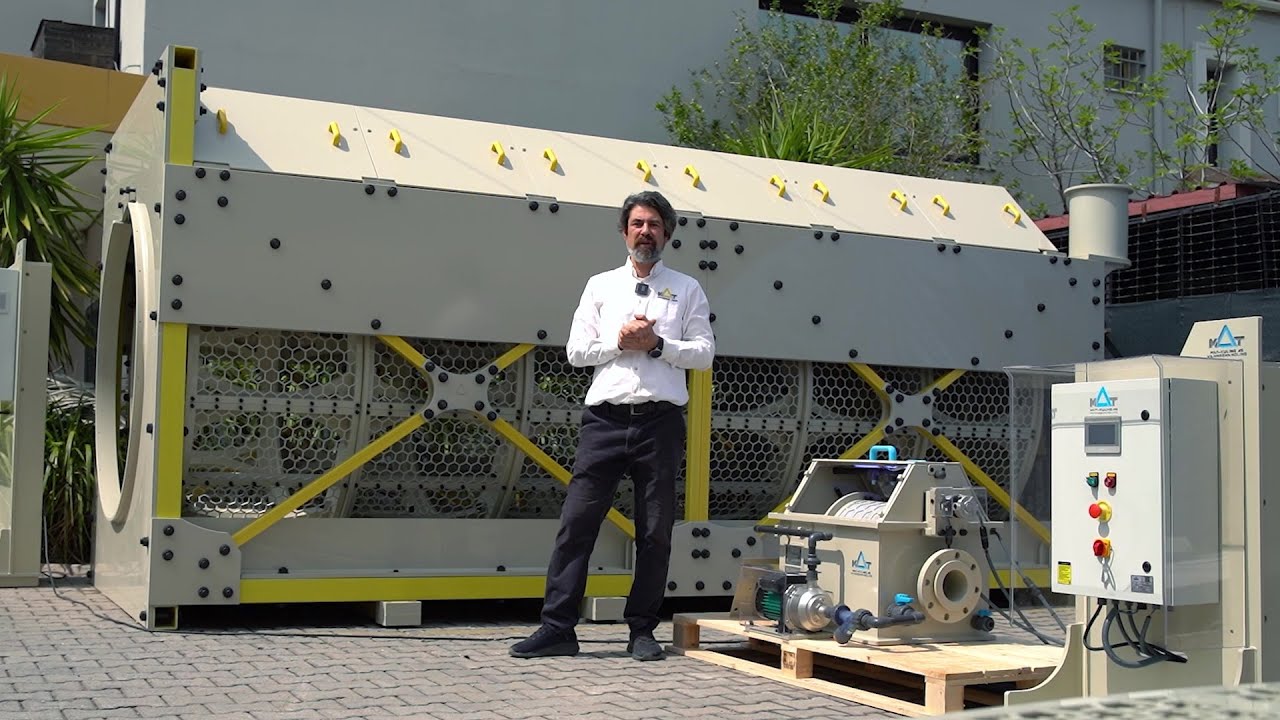

Drum Filters - Water Treatment, Part 2/3

Drum Filters - Water Treatment, Part 2/3

Watch this video on YouTube

Drum Filters - Mechanical Water Treatment, Part 3/3

Drum Filters - Mechanical Water Treatment, Part 3/3

Watch this video on YouTube

MAT Drum Filters feature:

Filtration without flow interruption
Filtration degree from 10 micron to 3000 micron
Manufacturing program: 1 m³/h – 4500 m³/h
No need for pressure
Available in stainless steel 304, 316, 316L
Very low water loss
Applications: Public Aquariums, Waterparks, Zoos, Water and waste water treatment, water supply systems, irrigation, cooling towers, pre-filtration systems, manufacturing, industry, aquaculture

Drum Filter DRF 50 for Aquariums

Automatic Filters
Titanium Filters
All Plastic Filters

Drum Filters

Aquarium Rotary Vacuum Model MDF 501

Aquarium Drum Filter — Drum Filter for Aquariums

Drum Filters for Aquariums MDF-802-PP

Specifications

DRUM FILTER MODEL	DRF-400-1	DRF-800-1	DRF-800-2	DRF-800-3	DRF-1200-3	DRF-1200-4	DRF-1600-4	DRF-1600-6	DRF-1600-8	DRF-2000-7	DRF-2000-8	DRF-2000-9	DRF-2000-10	DRF-2000-12	DRF-2000-16	DRF-2000-18
Drum diameter[mm]	400	800	800	800	1200	1200	1600	1600	1600	2000	2000	2000	2000	2000	2000	2000
Drum length[mm]	385	385	770	1155	1155	1540	1540	2310	3080	2695	3080	3465	3850	4620	6160	6930
Screen Panel Type-	SP-2	SP-2	SP-2	SP-2	SP-2	SP-2	SP-2	SP-2	SP-2	SP-2	SP-2	SP-2	SP-2	SP-2	SP-2	SP-2
Per Panel Aream2	0.46	0.46	0.46	0.46	0.46	0.46	0.46	0.46	0.46	0.46	0.46	0.46	0.46	0.46	0.46	0.46
Total Panel Aream2	0.46	0.92	1.84	2.76	4.14	5.52	7.36	11.04	14.72	16.1	18.4	20.7	23	27.6	36.8	41.4
Total Screen Panel Quantitypcs	1	2	4	6	9	12	16	24	32	35	40	45	50	60	80	90
Per Segment Panel Quantitypcs	1	2	2	2	3	3	4	4	4	5	5	5	5	5	5	5
Screen Panel Dimensions[mm]	385 x 1200	385 x 1200	385 x 1200	385 x 1200	385 x 1200	385 x 1200	385 x 1200	385 x 1200	385 x 1200	385 x 1200	385 x 1200	385 x 1200	385 x 1200	385 x 1200	385 x 1200	385 x 1200
Available Types: T(Tank), HT(Half Tank), C(Channel)	T/HT/C	T/HT/C	T/HT/C	T/HT/C	T/HT/C	T/HT/C	T/HT/C	T/HT/C	T/HT/C	T/HT/C	T/HT/C	T/HT/C	T/HT/C	T/HT/C	C	C
Available Tank/Housing Wall Material-	Polymer	Polymer	Polymer	Polymer	Polymer	Polymer	Polymer/304/316/ Duplex	Polymer/304/316/Duplex	Polymer/304/316/Duplex	Polymer/304/316/Duplex	Polymer/304/316/Duplex	Polymer/304/316/Duplex	Polymer/304/316/Duplex	Polymer/304/316/Duplex	304/316/Duplex	304/316/Duplex
Drum Structure Material-	Polymer	Polymer	Polymer	Polymer	Polymer	Polymer	Polymer/304/316/ Duplex	Polymer/304/316/ Duplex	Polymer/304/316/ Duplex	Polymer/304/316/ Duplex	Polymer/304/316/ Duplex	Polymer/304/316/ Duplex	Polymer/304/316/ Duplex	Polymer/304/316/ Duplex	304/316/Duplex	304/316/Duplex
Frame Material-	Polymer	Polymer	Polymer	Polymer	Polymer	Polymer	Polymer/304/316/Duplex	Polymer/304/316/Duplex	Polymer/304/316/Duplex	Polymer/304/316/Duplex	Polymer/304/316/Duplex	Polymer/304/316/Duplex	Polymer/304/316/Duplex	Polymer/304/316/Duplex	304/316/Duplex	304/316/Duplex
Lid/Cover Material-	Polymer	Polymer	Polymer	Polymer	Polymer	Polymer	Polymer	Polymer	Polymer	Polymer	Polymer	Polymer	Polymer	Polymer	Polymer	Polymer
Seal/Gasket Material-	EPDM	EPDM	EPDM	EPDM	EPDM	EPDM	EPDM	EPDM	EPDM	EPDM	EPDM	EPDM	EPDM	EPDM	EPDM	EPDM
Bacwash Water Flow[m³/hr]	1.08	1.08	2.16	3.24	3.24	4.32	4.32	6.48	8.64	7.56	8.64	9.72	10.8	12.96	17.28	19.44
Required Backwash PressureBar	45481	45481	45481	45481	45481	45481	45481	45481	45481	45481	45481	45481	45481	45481	45481	45481
Mesh Size Rangemicron	10-500	10-500	10-500	10-500	10-500	10-500	10-500	10-500	10-500	10-500	10-500	10-500	10-500	10-500	10-500	10-500
Available Screen Panel Mesh Material-	PET Monofilament	PET Monofilament / 304/316/Duplex	PET Monofilament /304/316/Duplex	PET Monofilament /304/316/Duplex	PET Monofilament /304/316/Duplex	PET Monofilament /304/316/Duplex	PET Monofilament /304/316/Duplex	PET Monofilament /304/316/Duplex	PET Monofilament /304/316/Duplex	PET Monofilament /304/316/Duplex	PET Monofilament /304/316/Duplex	PET Monofilament /304/316/Duplex	PET Monofilament /304/316/Duplex	PET Monofilament /304/316/Duplex	PET Monofilament /304/316/Duplex	PET Monofilament /304/316/Duplex
Available Screen Panel Grid Support Material-	Polymer/304/316/Duplex	Polymer/304/316/Duplex	Polymer/304/316/Duplex	Polymer/304/316/Duplex	Polymer/304/316/Duplex	Polymer/304/316/Duplex	Polymer/304/316/Duplex	Polymer/304/316/Duplex	Polymer/304/316/Duplex	Polymer/304/316/Duplex	Polymer/304/316/Duplex	Polymer/304/316/Duplex	Polymer/304/316/Duplex	Polymer/304/316/Duplex	Polymer/304/316/Duplex	Polymer/304/316/Duplex
Drive Type-	Direct Drive Gears	Direct Drive Gears	Direct Drive Gears	Direct Drive Gears	Direct Drive Gears	Direct Drive Gears	Chain	Chain	Chain	Chain	Chain	Chain	Chain	Chain	Chain	Chain
Drive/Chain Material-	Polymer	Polymer	Polymer	Polymer	Polymer	Polymer	Polymers (with 316, Duplex, Ti Pins)	Polymers (with 316, Duplex, Ti Pins)	Polymers (with 316, Duplex, Ti Pins)	Polymers (with 316, Duplex, Ti Pins)	Polymers (with 316, Duplex, Ti Pins)	Polymers (with 316, Duplex, Ti Pins)	Polymers (with 316, Duplex, Ti Pins)	Polymers (with 316, Duplex, Ti Pins)	Polymers (with 316, Duplex, Ti Pins)	Polymers (with 316, Duplex, Ti Pins)
Suppor Wheel Material-	Polymer	Polymer	Polymer	Polymer	Polymer	Polymer	Polymer	Polymer	Polymer	Polymer	Polymer	Polymer	Polymer	Polymer	Polymer	Polymer
Electrical Panel Supply (4-Wire)Ph~V @ 50 Hz	3Ph~400V	3Ph~400V	3Ph~400V	3Ph~400V	3Ph~400V	3Ph~400V	3Ph~400V	3Ph~400V	3Ph~400V	3Ph~400V	3Ph~400V	3Ph~400V	3Ph~400V	3Ph~400V	3Ph~400V	3Ph~400V
Tank Type Max Hydraulic Capacity	64.3	128.6	257.3	385.9	578.9	771.8	1029.1	1543.7	2058.3	2251.2	2572.8	2894.4	3216	3859.2	5145.6	5788.8
Half Type Max Hydraulic Capacity	80.4	160.8	321.6	482.4	723.6	964.8	1286.4	1929.6	2572.9	2814	3216	3618	4020	4824	6432	7236
Channel Type Max Hydraulic Capacity	96.5	192.9	386	578.9	868.4	1157.7	1543.7	2315.6	3087.5	3376.8	3859.2	4341.6	4824	5788.8	7718.4	8683.2
Flow Capacities (Mesh Size 10 µ ) ( Recommended Pre-Screening Size - 2mm)[m³/h] (Design TSS - 5 mg/l )	9	18	36	53	80	107	143	214	285	312	356	401	445	534	713	802
Flow Capacities (Mesh Size 10 µ ) ( Recommended Pre-Screening Size - 2mm)[m³/h] (Design TSS - 10 mg/l )	9	17	34	51	76	102	136	204	272	297	339	382	424	509	679	764
Flow Capacities (Mesh Size 10 µ ) ( Recommended Pre-Screening Size - 2mm)[m³/h] (Design TSS - 15 mg/l )	8	15	31	46	69	93	123	185	247	270	309	347	386	463	617	694
Flow Capacities (Mesh Size 10 µ ) ( Recommended Pre-Screening Size - 2mm)[m³/h] (Design TSS - 30 mg/l )	7	14	28	42	63	84	112	168	224	245	280	316	351	421	561	631
Flow Capacities (Mesh Size 10 µ ) ( Recommended Pre-Screening Size - 2mm)[m³/h] (Design TSS - 100 mg/l )	5	9	18	27	41	55	73	109	146	160	182	205	228	273	365	410
Flow Capacities (Mesh Size 10 µ ) ( Recommended Pre-Screening Size - 2mm)[m³/h] (Design TSS - 200 mg/l )	3	6	11	16	25	33	44	66	88	96	109	123	137	164	219	246
Flow Capacities (Mesh Size 10 µ ) ( Recommended Pre-Screening Size - 2mm)[m³/h] (Design TSS - 500 mg/l )	1	3	6	8	12	16	22	33	44	48	55	62	68	82	109	123
Flow Capacities (Mesh Size 20 µ ) ( Recommended Pre-Screening Size - 4mm)[m³/h] (Design TSS - 5 mg/l )	15	30	59	89	134	178	238	356	475	520	594	668	742	891	1188	1336
Flow Capacities (Mesh Size 20 µ ) ( Recommended Pre-Screening Size - 4mm)[m³/h] (Design TSS - 10 mg/l )	14	28	57	85	127	170	226	339	452	495	566	636	707	848	1131	1273
Flow Capacities (Mesh Size 20 µ ) ( Recommended Pre-Screening Size - 4mm)[m³/h] (Design TSS - 15 mg/l )	13	26	51	77	116	154	206	309	411	450	514	578	643	771	1028	1157
Flow Capacities (Mesh Size 20 µ ) ( Recommended Pre-Screening Size - 4mm)[m³/h] (Design TSS - 30 mg/l )	12	23	47	70	105	140	187	280	374	409	467	526	584	701	935	1052
Flow Capacities (Mesh Size 20 µ ) ( Recommended Pre-Screening Size - 4mm)[m³/h] (Design TSS - 100 mg/l )	8	15	30	46	68	91	122	182	243	266	304	342	380	456	608	684
Flow Capacities (Mesh Size 20 µ ) ( Recommended Pre-Screening Size - 4mm)[m³/h] (Design TSS - 200 mg/l )	5	9	18	27	41	55	73	109	146	160	182	205	228	273	365	410
Flow Capacities (Mesh Size 20 µ ) ( Recommended Pre-Screening Size - 4mm)[m³/h] (Design TSS - 500 mg/l )	2	5	9	14	21	27	37	55	73	80	91	103	114	137	182	205
Flow Capacities (Mesh Size 25 µ ) ( Recommended Pre-Screening Size - 5mm)[m³/h] (Design TSS - 5 mg/l )	25	50	99	149	223	297	396	594	792	866	990	1113	1237	1485	1979	2227
Flow Capacities (Mesh Size 25 µ ) ( Recommended Pre-Screening Size - 5mm)[m³/h] (Design TSS - 10 mg/l )	24	47	94	141	212	283	377	566	754	825	943	1060	1178	1414	1885	2121
Flow Capacities (Mesh Size 25 µ ) ( Recommended Pre-Screening Size - 5mm)[m³/h] (Design TSS - 15 mg/l )	21	43	86	129	193	257	343	514	686	750	857	964	1071	1285	1714	1928
Flow Capacities (Mesh Size 25 µ ) ( Recommended Pre-Screening Size - 5mm)[m³/h] (Design TSS - 30 mg/l )	20	39	78	117	175	234	312	467	623	682	779	876	974	1169	1558	1753
Flow Capacities (Mesh Size 25 µ ) ( Recommended Pre-Screening Size - 5mm)[m³/h] (Design TSS - 100 mg/l )	13	25	51	76	114	152	203	304	405	443	506	570	633	760	1013	1139
Flow Capacities (Mesh Size 25 µ ) ( Recommended Pre-Screening Size - 5mm)[m³/h] (Design TSS - 200 mg/l )	8	15	30	46	68	91	122	182	243	266	304	342	380	456	608	684
Flow Capacities (Mesh Size 25 µ ) ( Recommended Pre-Screening Size - 5mm)[m³/h] (Design TSS - 500 mg/l )	4	8	15	23	34	46	61	91	122	133	152	171	190	228	304	342
Flow Capacities (Mesh Size 30 µ ) ( Recommended Pre-Screening Size - 6mm)[m³/h] (Design TSS - 5 mg/l )	35	71	141	212	318	424	566	848	1131	1237	1414	1591	1767	2121	2828	3181
Flow Capacities (Mesh Size 30 µ ) ( Recommended Pre-Screening Size - 6mm)[m³/h] (Design TSS - 10 mg/l )	34	67	135	202	303	404	539	808	1077	1178	1347	1515	1683	2020	2693	3030
Flow Capacities (Mesh Size 30 µ ) ( Recommended Pre-Screening Size - 6mm)[m³/h] (Design TSS - 15 mg/l )	31	61	122	184	275	367	490	735	979	1071	1224	1377	1530	1836	2448	2754
Flow Capacities (Mesh Size 30 µ ) ( Recommended Pre-Screening Size - 6mm)[m³/h] (Design TSS - 30 mg/l )	28	56	111	167	250	334	445	668	890	974	1113	1252	1391	1669	2226	2504
Flow Capacities (Mesh Size 30 µ ) ( Recommended Pre-Screening Size - 6mm)[m³/h] (Design TSS - 100 mg/l )	18	36	72	109	163	217	289	434	579	633	723	814	904	1085	1447	1628
Flow Capacities (Mesh Size 30 µ ) ( Recommended Pre-Screening Size - 6mm)[m³/h] (Design TSS - 200 mg/l )	11	22	43	65	98	130	174	260	347	380	434	488	543	651	868	977
Flow Capacities (Mesh Size 30 µ ) ( Recommended Pre-Screening Size - 6mm)[m³/h] (Design TSS - 500 mg/l )	5	11	22	33	49	65	87	130	174	190	217	244	271	326	434	488
Flow Capacities (Mesh Size 40 µ ) ( Recommended Pre-Screening Size - 8mm)[m³/h] (Design TSS - 5 mg/l )	51	101	202	303	455	606	808	1212	1616	1767	2020	2272	2525	3030	4040	4545
Flow Capacities (Mesh Size 40 µ ) ( Recommended Pre-Screening Size - 8mm)[m³/h] (Design TSS - 10 mg/l )	48	96	192	289	433	577	769	1154	1539	1683	1924	2164	2405	2885	3847	4328
Flow Capacities (Mesh Size 40 µ ) ( Recommended Pre-Screening Size - 8mm)[m³/h] (Design TSS - 15 mg/l )	44	87	175	262	394	525	700	1049	1399	1530	1749	1967	2186	2623	3498	3935
Flow Capacities (Mesh Size 40 µ ) ( Recommended Pre-Screening Size - 8mm)[m³/h] (Design TSS - 30 mg/l )	40	80	159	239	358	477	636	954	1272	1391	1590	1789	1987	2385	3180	3577
Flow Capacities (Mesh Size 40 µ ) ( Recommended Pre-Screening Size - 8mm)[m³/h] (Design TSS - 100 mg/l )	26	52	103	155	233	310	413	620	827	904	1033	1163	1292	1550	2067	2325
Flow Capacities (Mesh Size 40 µ ) ( Recommended Pre-Screening Size - 8mm)[m³/h] (Design TSS - 200 mg/l )	16	31	62	93	140	186	248	372	496	543	620	698	775	930	1240	1395
Flow Capacities (Mesh Size 40 µ ) ( Recommended Pre-Screening Size - 8mm)[m³/h] (Design TSS - 500 mg/l )	8	16	31	47	70	93	124	186	248	271	310	349	388	465	620	698
Flow Capacities (Mesh Size 50 µ ) ( Recommended Pre-Screening Size - 10mm)[m³/h] (Design TSS - 5 mg/l )	63	126	253	379	568	757	1010	1515	2020	2209	2525	2840	3156	3787	5050	5681
Flow Capacities (Mesh Size 50 µ ) ( Recommended Pre-Screening Size - 10mm)[m³/h] (Design TSS - 10 mg/l )	60	120	240	361	541	721	962	1443	1924	2104	2405	2705	3006	3607	4809	5410
Flow Capacities (Mesh Size 50 µ ) ( Recommended Pre-Screening Size - 10mm)[m³/h] (Design TSS - 15 mg/l )	55	109	219	328	492	656	874	1312	1749	1913	2186	2459	2732	3279	4372	4918
Flow Capacities (Mesh Size 50 µ ) ( Recommended Pre-Screening Size - 10mm)[m³/h] (Design TSS - 30 mg/l )	50	99	199	298	447	596	795	1192	1590	1739	1987	2236	2484	2981	3974	4471
Flow Capacities (Mesh Size 50 µ ) ( Recommended Pre-Screening Size - 10mm)[m³/h] (Design TSS - 100 mg/l )	32	65	129	194	291	388	517	775	1033	1130	1292	1453	1615	1938	2583	2906
Flow Capacities (Mesh Size 50 µ ) ( Recommended Pre-Screening Size - 10mm)[m³/h] (Design TSS - 200 mg/l )	19	39	78	116	174	233	310	465	620	678	775	872	969	1163	1550	1744
Flow Capacities (Mesh Size 50 µ ) ( Recommended Pre-Screening Size - 10mm)[m³/h] (Design TSS - 500 mg/l )	10	19	39	58	87	116	155	233	310	339	388	436	484	581	775	872
Flow Capacities (Mesh Size 60 µ ) ( Recommended Pre-Screening Size - 12mm)[m³/h] (Design TSS - 5 mg/l )	68	135	270	405	608	810	1081	1621	2161	2364	2702	3039	3377	4052	5403	6078
Flow Capacities (Mesh Size 60 µ ) ( Recommended Pre-Screening Size - 12mm)[m³/h] (Design TSS - 10 mg/l )	64	129	257	386	579	772	1029	1544	2058	2251	2573	2894	3216	3859	5146	5789
Flow Capacities (Mesh Size 60 µ ) ( Recommended Pre-Screening Size - 12mm)[m³/h] (Design TSS - 15 mg/l )	59	117	234	351	526	702	936	1403	1871	2047	2339	2631	2924	3508	4678	5263
Flow Capacities (Mesh Size 60 µ ) ( Recommended Pre-Screening Size - 12mm)[m³/h] (Design TSS - 30 mg/l )	53	106	213	319	478	638	851	1276	1701	1861	2126	2392	2658	3190	4253	4784
Flow Capacities (Mesh Size 60 µ ) ( Recommended Pre-Screening Size - 12mm)[m³/h] (Design TSS - 100 mg/l )	35	69	138	207	311	415	553	829	1106	1209	1382	1555	1728	2073	2764	3110
Flow Capacities (Mesh Size 60 µ ) ( Recommended Pre-Screening Size - 12mm)[m³/h] (Design TSS - 200 mg/l )	21	42	83	124	187	249	332	498	663	726	829	933	1037	1244	1659	1866
Flow Capacities (Mesh Size 60 µ ) ( Recommended Pre-Screening Size - 12mm)[m³/h] (Design TSS - 500 mg/l )	10	21	42	62	93	124	166	249	332	363	415	467	518	622	829	933
Flow Capacities (Mesh Size 100 µ ) ( Recommended Pre-Screening Size - 15mm)[m³/h] (Design TSS - 5 mg/l )	74	149	297	446	669	892	1189	1783	2377	2600	2972	3343	3715	4457	5943	6686
Flow Capacities (Mesh Size 100 µ ) ( Recommended Pre-Screening Size - 15mm)[m³/h] (Design TSS - 10 mg/l )	71	142	283	425	637	849	1132	1698	2264	2476	2830	3184	3538	4245	5660	6368
Flow Capacities (Mesh Size 100 µ ) ( Recommended Pre-Screening Size - 15mm)[m³/h] (Design TSS - 15 mg/l )	64	129	257	386	579	772	1029	1544	2058	2251	2573	2894	3216	3859	5146	5789
Flow Capacities (Mesh Size 100 µ ) ( Recommended Pre-Screening Size - 15mm)[m³/h] (Design TSS - 30 mg/l )	59	117	234	351	526	702	936	1403	1871	2047	2339	2631	2924	3508	4678	5263
Flow Capacities (Mesh Size 100 µ ) ( Recommended Pre-Screening Size - 15mm)[m³/h] (Design TSS - 100 mg/l )	38	76	152	228	342	456	608	912	1216	1330	1520	1710	1900	2281	3041	3421
Flow Capacities (Mesh Size 100 µ ) ( Recommended Pre-Screening Size - 15mm)[m³/h] (Design TSS - 200 mg/l )	23	46	91	137	205	274	365	547	730	798	912	1026	1140	1368	1824	2053
Flow Capacities (Mesh Size 100 µ ) ( Recommended Pre-Screening Size - 15mm)[m³/h] (Design TSS - 500 mg/l )	11	23	46	68	103	137	182	274	365	399	456	513	570	684	912	1026
Flow Capacities (Mesh Size 200 µ ) ( Recommended Pre-Screening Size - 15mm)[m³/h] (Design TSS - 5 mg/l )	82	163	327	490	736	981	1308	1961	2615	2860	3269	3677	4086	4903	6538	7355
Flow Capacities (Mesh Size 200 µ ) ( Recommended Pre-Screening Size - 15mm)[m³/h] (Design TSS - 10 mg/l )	78	156	311	467	701	934	1245	1868	2491	2724	3113	3502	3891	4670	6226	7005
Flow Capacities (Mesh Size 200 µ ) ( Recommended Pre-Screening Size - 15mm)[m³/h] (Design TSS - 15 mg/l )	71	142	283	425	637	849	1132	1698	2264	2476	2830	3184	3538	4245	5660	6368
Flow Capacities (Mesh Size 200 µ ) ( Recommended Pre-Screening Size - 15mm)[m³/h] (Design TSS - 30 mg/l )	64	129	257	386	579	772	1029	1544	2058	2251	2573	2894	3216	3859	5146	5789
Flow Capacities (Mesh Size 200 µ ) ( Recommended Pre-Screening Size - 15mm)[m³/h] (Design TSS - 100 mg/l )	42	84	167	251	376	502	669	1003	1338	1463	1672	1881	2090	2509	3345	3763
Flow Capacities (Mesh Size 200 µ ) ( Recommended Pre-Screening Size - 15mm)[m³/h] (Design TSS - 200 mg/l )	25	50	100	151	226	301	401	602	803	878	1003	1129	1254	1505	2007	2258
Flow Capacities (Mesh Size 200 µ ) ( Recommended Pre-Screening Size - 15mm)[m³/h] (Design TSS - 500 mg/l )	13	25	50	75	113	151	201	301	401	439	502	564	627	753	1004	1129
Flow Capacities (Mesh Size 500 µ ) ( Recommended Pre-Screening Size - 15mm)[m³/h] (Design TSS - 5 mg/l )	94	188	376	564	846	1128	1504	2256	3007	3289	3759	4229	4699	5639	7518	8458
Flow Capacities (Mesh Size 500 µ ) ( Recommended Pre-Screening Size - 15mm)[m³/h] (Design TSS - 10 mg/l )	90	179	358	537	806	1074	1432	2148	2864	3133	3580	4028	4475	5370	7160	8055
Flow Capacities (Mesh Size 500 µ ) ( Recommended Pre-Screening Size - 15mm)[m³/h] (Design TSS - 30 mg/l )	81	163	326	488	732	976	1302	1953	2604	2848	3255	3662	4068	4882	6509	7323
Flow Capacities (Mesh Size 500 µ ) ( Recommended Pre-Screening Size - 15mm)[m³/h] (Design TSS - 100 mg/l )	74	148	296	444	666	888	1184	1775	2367	2589	2959	3329	3698	4438	5918	6657
Flow Capacities (Mesh Size 500 µ ) ( Recommended Pre-Screening Size - 15mm)[m³/h] (Design TSS - 200 mg/l )	48	96	192	289	433	577	769	1154	1539	1683	1923	2164	2404	2885	3846	4372
Flow Capacities (Mesh Size 500 µ ) ( Recommended Pre-Screening Size - 15mm)[m³/h] (Design TSS - 500 mg/l )	29	58	115	173	260	346	462	692	923	1010	1154	1298	1442	1731	2308	2596

Optional Components

DRUM FILTER	MODEL TYPE	DRF-400-1FRAME	DRF-400-1TANK	DRF-800-1FRAME	DRF-800-1TANK	DRF-800-2FRAME	DRF-800-2TANK	DRF-800-3FRAME	DRF-800-3TANK	DRF-1200-3FRAME	DRF-1200-3TANK	DRF-1200-4FRAME	DRF-1200-4TANK	DRF-1600-4FRAME	DRF-1600-4TANK	DRF-1600-6FRAME	DRF-1600-6TANK	DRF-1600-8FRAME	DRF-1600-8TANK	DRF-2000-7FRAME	DRF-2000-7TANK	DRF-2000-8FRAME	DRF-2000-8TANK	DRF-2000-9FRAME	DRF-2000-9TANK	DRF-2000-10FRAME	DRF-2000-10TANK	DRF-2000-12FRAME	DRF-2000-12TANK	DRF-2000-16FRAME	DRF-2000-16TANK	DRF-2000-18FRAME	DRF-2000-18TANK
Optional FEATURES	Drum Auto wash as per Water Level Fixed Drum Wash Rotation Speed	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional
Optional FEATURES	Drum Auto wash as per Water Level Error/Status/Alarm Function via Digital Screen Drum Filter Rotation Modes PROFINET/MODBUST Connection Including Smart Relay/Power Supply/Driver Units	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional
Optional FEATURES	Error/Status/Alarm Function via Touch Screen Drum Filter Rotation Modes PROFINET/MODBUST Connection Including PLC/HMI/Power Supply/Driver Units	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional	Optional

* MAT FILTRATION TECHNOLOGIES™ preserves the right to update anytime the listed prices (if any). Every effort has been made so that the above specs are accurate. However please contact our Sales Department for up to date technical data, electrical specs according to your regional requirements and current Ex-Works pricelist. The listed prices are for the basic equipment and do not include any optional components.
